Features
CPU | DM&P Vortex86EX2 Processor, Master 533MHz/Slave 400MHz | |
Memory | 512MB/1GB DDRIII Onboard | |
Storage | 32MB SPI Flash/2GB SLC eMMC | |

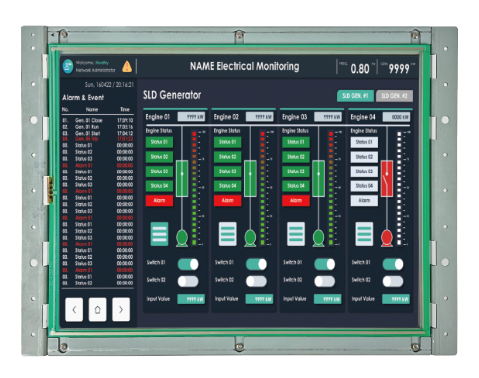

LCD Display | 15-inch TFT 1024×768 Resolution LCD with Restive touchscreen | |

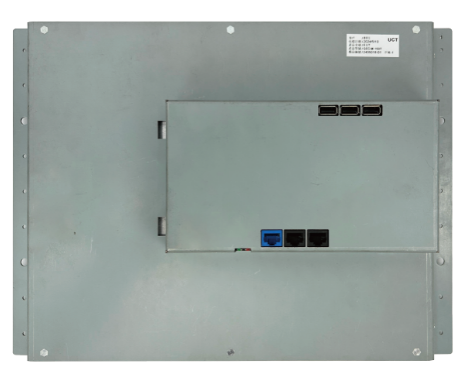

LAN | 1Gbps Ethernet RJ45 x1
10/100Mbps Ethernet RJ45 x2 for EtherCAT |
|
Expansion | MiniPCIe x 1 with Micro SIM Card Holder | |

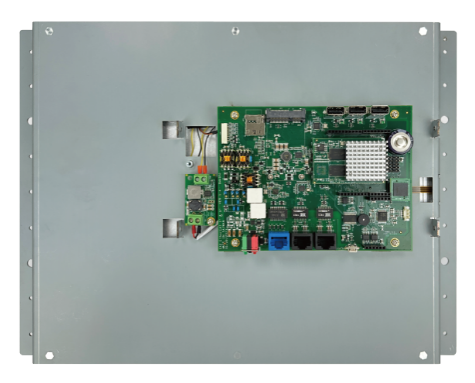

I/O Connector | 2.54mm 2-pin header for Power Connector
1.25mm 4-pin wafer for Line-Out Power DC Input/Output Connector x1 Micro USB (Type-B) x1 (Upload/Debug only) VGA Connector (10-pin) x1 |
1.25mm 4-pin header for EXT I2C TFT Driver
Micro SIM Card Holder x1 MiniPCIe slot x1 USB 2.0 Host x3 RJ45 x3 |
Arduino Compatible Connector | 2.54mm 10-pin female header for I2C0, MCM, GPIO 2.54mm 8-pin female header for MCM, GPIO, COM1 (TTL) 2.54mm 8-pin female header for Power source 2.54mm 6-pin female header for ADC/GPIO 2.54mm 6-pin female header for GPIO, VCC and GND |
2.54mm 6-pin female header for CAN0 and CAN1 bus 2.54mm 10-pin header for SPI0 bus, RESET-, GPIO and I2C1 2.54mm 10-pin header for SPI1 bus, RESET-, GPIO and RS485 function (COM4) |
Protocol | EtherCAT (EtherCAT Master Functions: PDO, CoE, DC, Cable-redundancy, etc.) | |
Ethernet Standard | IEEE 802.3 | |
Control Cycle Time | 125 µs (min.) | |
Power Connector | 6-pin Power Input /Output | |
Power Requirement | +19 to +50VDC Power Input (Typ. +24VDC) | |
LCD Display Power | DCM-12V: Input 15~36Vdc and Output 12V@Max. 2.5A. | |
Power Consumption | 10W | |
Operating Temperature | 0 to +50°C/-20 to +60°C (Option) | |

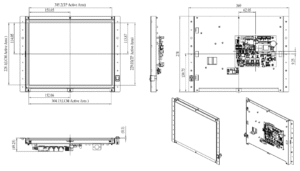

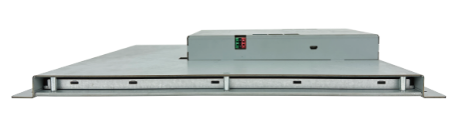

Dimension | 245 x 152.2 x 32.5mm | |
Weight | 2.3 Kg | |
Internal Monitoring | Temperature, Voltage, Current | |
Software Support | 86Duino Coding IDE (The environment is written in Java and based on Arduino IDE, Processing, DJGPP, and other open source software) |
