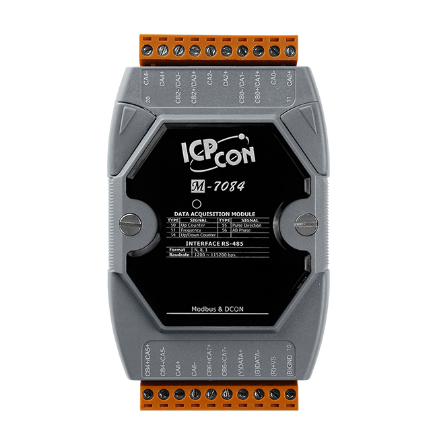

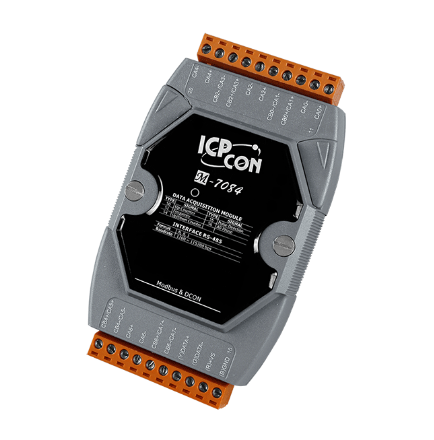

M-7084-G 4/8-ch Counter/Frequency/Encoder Input Module


  • 8 Up Counter/Frequency or 4 Encoder Inputs
  • Programmable Digital Filter
  • Supports 32-bit Counter
  • Individual Channel Configuration
  • Built-in Virtual Battery Backup to Preserve Counter Values
  • Preset Values for Counter Input


The M-7084 is a 32-bit high-speed Counter/Frequency/Encoder input module that offers a variety of mode options, including “Up Counter”, “Frequency Input”, “Up/Down Counter”, “Direct/Pulse Counter” and “A/B Phase Counter” modes. The mode combinations can be individually set for all 8 channels, where some channels can be set to “Up Counter” mode and other channels can be simultaneously set to “Frequency Input”, “Up/ Down Counter” or “Encoder input” mode. The built-in digital filter can filter out noise where the high/ low pulse width is smaller than the minimum high/low width of the digital filter. The M-7084 provides a virtual battery backup function in counter mode.


• Counter Measurement
• Frequency Measurement and Encoder Motion Control
