| Model | AXBOX-I226-RAID |
| Processor | Intel Core i5-1235U (10 Cores 12 Threads, Turbo 4.4 Ghz) Intel Core i7-1255U (10 Cores 12 Threads, Turbo 4.7 Ghz) |
| Chipset | Alder Lake |
| Memory | Support 2*DDR5 4800 SODIMM, Max 64GB |
| Display Card | Intel(R) Iris Xe Graphics |
| Display Port | 4*HDMI (4096 x 2160 @ 60Hz) Support synchronous / asynchronous multi-display |

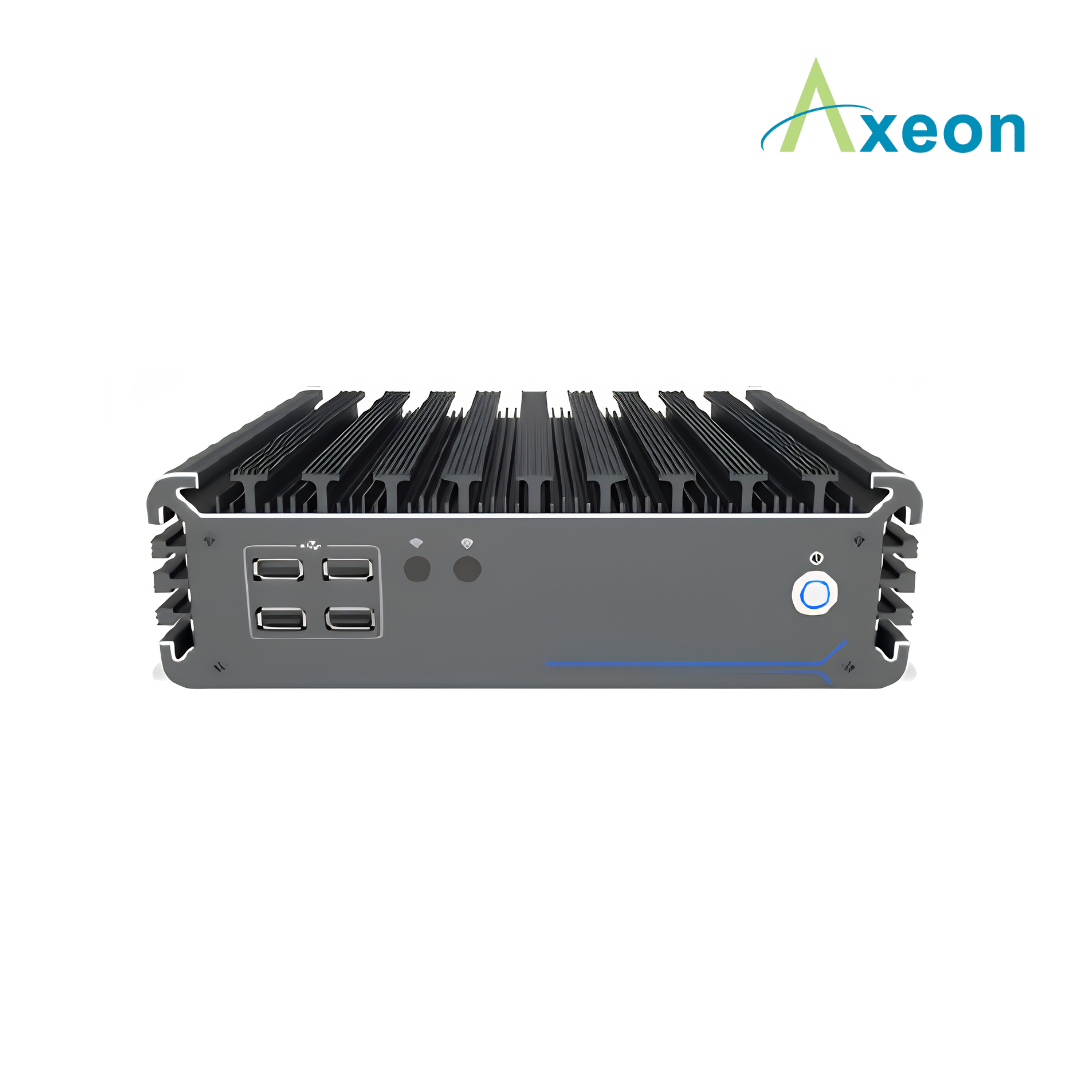

| Front I/O | 4*USB2.0, 1*power button |

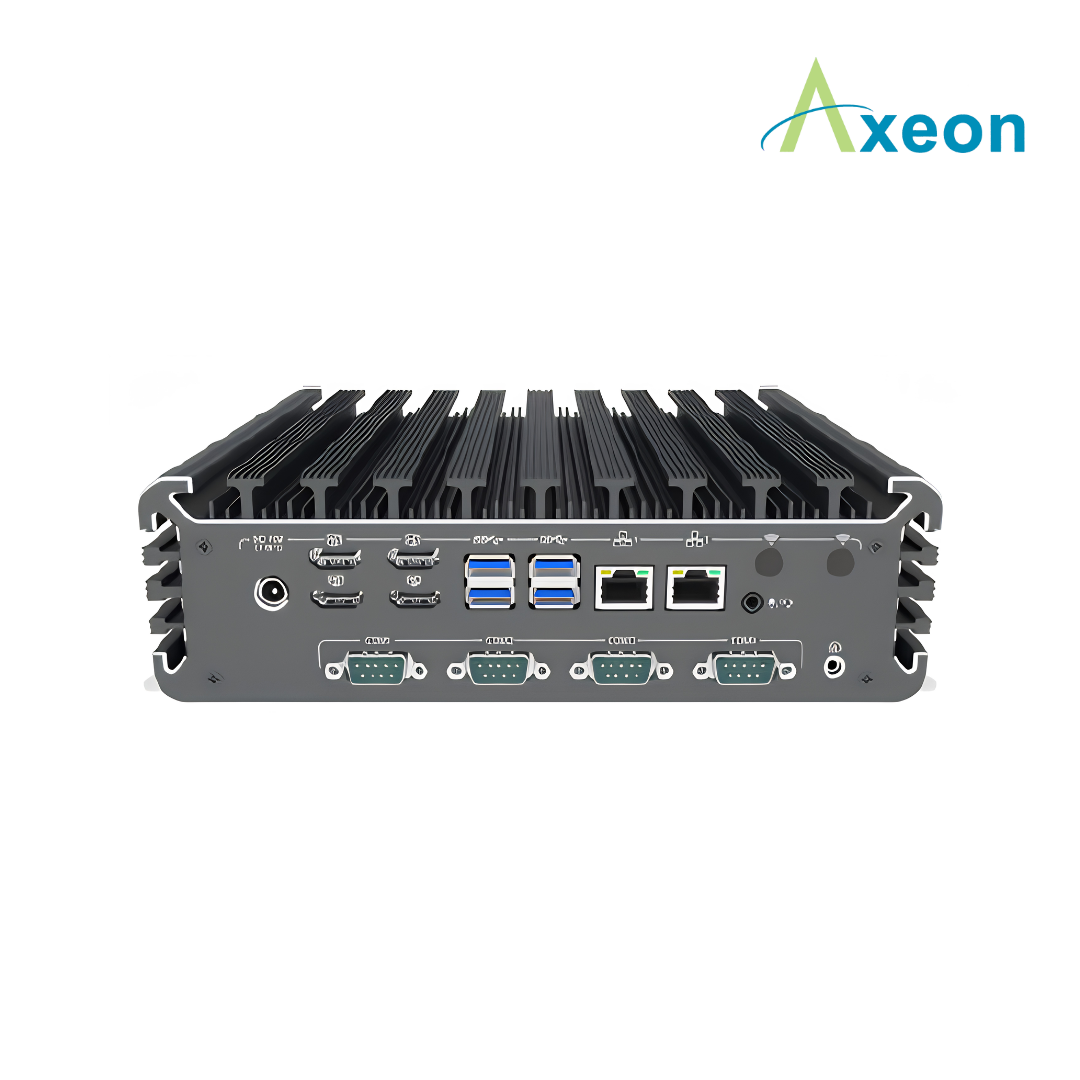

| Rear I/O | 1*DC, 4*HDMI, 4*USB3.0, 2*Intel GbE LAN, 1*(2 in 1) Audio, 4*COM (COM1&2: RS232/485 optional) |
| Expansion Slot | Support 1*M.2 2280 M-key slot support (NVMEx4 protocol) Support 1*M.2 2280 M-key slot support (NVME x2 protocol) Support 1*M.2 2230 E-key slot support (WIFI/Bluetooth) Support 1*M.2 3042/3052 B-key (4G/5G module), with SIM card Expansion slot (The standard without it) : 2 COM / 1 LAN port / 8-pin GPIO (please consult the pre-sales engineer for details on expanding multiple interfaces) |
| Network Port | 2*RTL8111H 10M/100M/1000M LAN |
| Storage | 2*M.2 2280 M-key slot (support NVMe protocol & Raid), 2*2.5″ HDD (Raid support) |
| Other Function | Auto power on when there is electricity, Timing boot, Wake on LAN, PXE boot, Watchdog (0～255 level) |
| Input Voltage | Support DC 12V input |
| Work Temp | 0℃ ～ +50℃ (business HDD), -20℃ ～ +60℃ (industrial SSD), Surface air flow |
| Work Humidity | 5% – 95% non-condensing state |
| Certificates | CE, CCC, FCC Class A, RoHS |
| Application | Industrial Automation, Medical, Logistics & Transportation, Warehouse, Machine Vision, etc. |
| Structure Parameter | |
| Color | Dark Gray (Can be customised) |
| Material | High quality aluminum alloy |
| Size | 230 * 200 * 68 mm |
| Weight | 2.64 kg (without wall mount) |
AXBOX-I226-RAID Industrial Mini PC
RM0.01
AXBOX-I226-RAID is powered by Alder Lake Intel Core U series CPU, ensures reliable and efficient processing. It supports 2 DDR5 4800MHz SO-DIMM memory up to 64GB. It can facilitate multi display setups with four HDMI ports, each capable of 4K resolution. The unit features two M.2 M-key slot for NVMe storage, an additional M.2 E-key slot that supports WIFI & Bluetooth and also M.2 B-key for 4G/5G module with SIM card provided that further enhances connectivity options. Two RTL8111H 10M/100M/1000M LAN ports provide high-speed networking, while a comprehensive set of eight USBs offers extensive connectivity for peripherals. Additionally, there are four COM ports for expanded interfacing capabilities.
